4x NOS K15U-1 K15Y-1 Doorknob Capacitors 22pF 6kV 5kVAR High Voltage Ceramic
High-voltage ceramic doorknob caps, set of 4 with screws, 22pF 6kV 5kVAR rating, tested NOS
$14.00
| Brand: | Soviet |
| Model/SKU: | K15U-1 |
| Type: | Doorknob capacitor |
| Condition: | |
| Availability: | In Stock (8 available) |
| Datasheets: |
Product Details

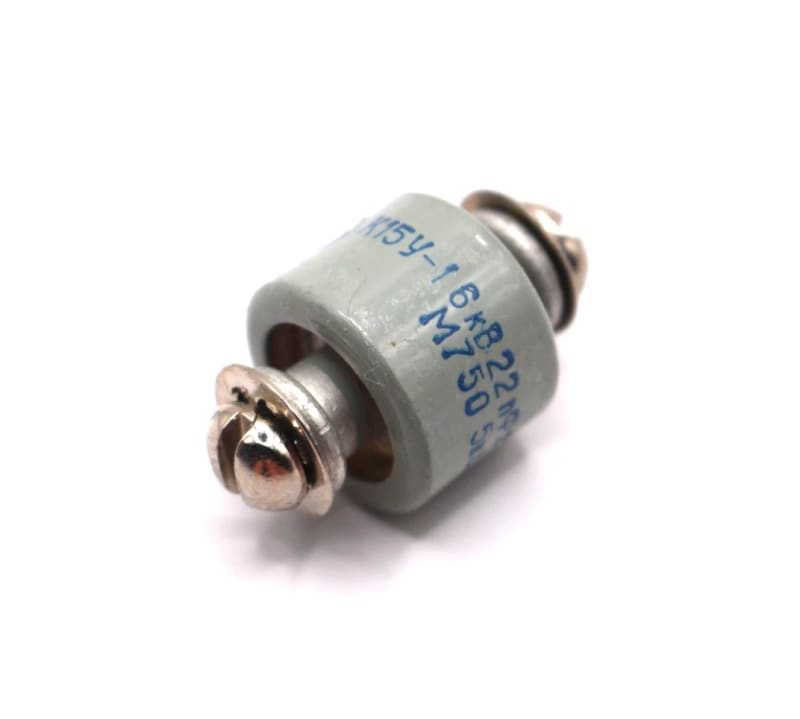

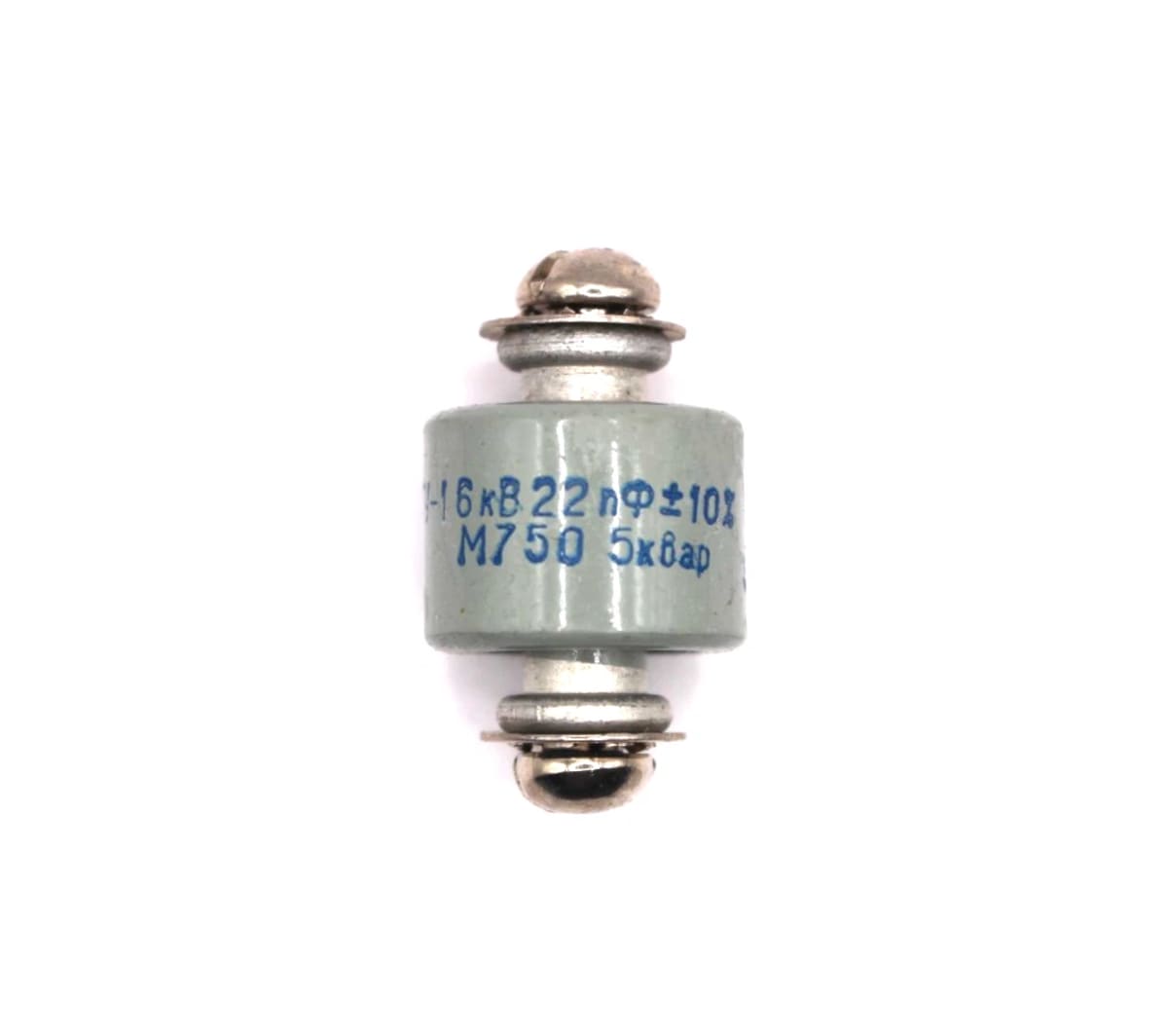

New Soviet K15U-1 (К15У-1) 22pF 6kV 5kVAR High Voltage Ceramic Doorknob capacitors.
Four capacitors in one lot (capacitors + screws)
New, Tested, and 100% Working.
K15U-1 6 kV 22 pF 5 kvar
Capacitors K15U-1 ceramic disk high-voltage protected non-insulated constant capacity.
Designed to operate in high-power radio equipment in continuous high-frequency mode and in DC circuits.
Used for universal use as loop, isolation and blocking capacitors.
Main technical parameters of capacitors K15U-1:
— Range of nominal capacities……. 1.0... 10000 pF;
- Rated voltage ……. 2; 3.5; 4; 6; 10; 12; 15; 20; 25 kV;
— Temperature stability group……. M75; M330; M750; M1500; P100; MP0;
— Permissible deviations of the capacity…….±10; ±20%;
— Loss angle tangent, no more than……. 0.0015;
— Insulation resistance, not less than……. 10000 MOhm;
— Relative air humidity at a temperature of +35 °C……. 98%;
— Temperature range……. -60… +155 °С;
— Minimum operating time……. 15000 hours
Any questions or offers are welcome!
