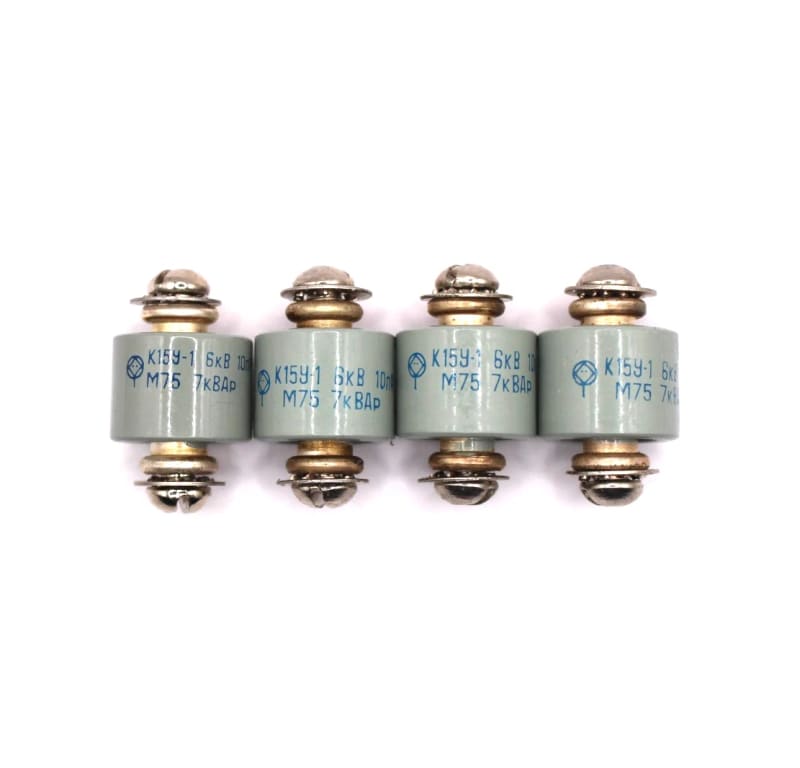

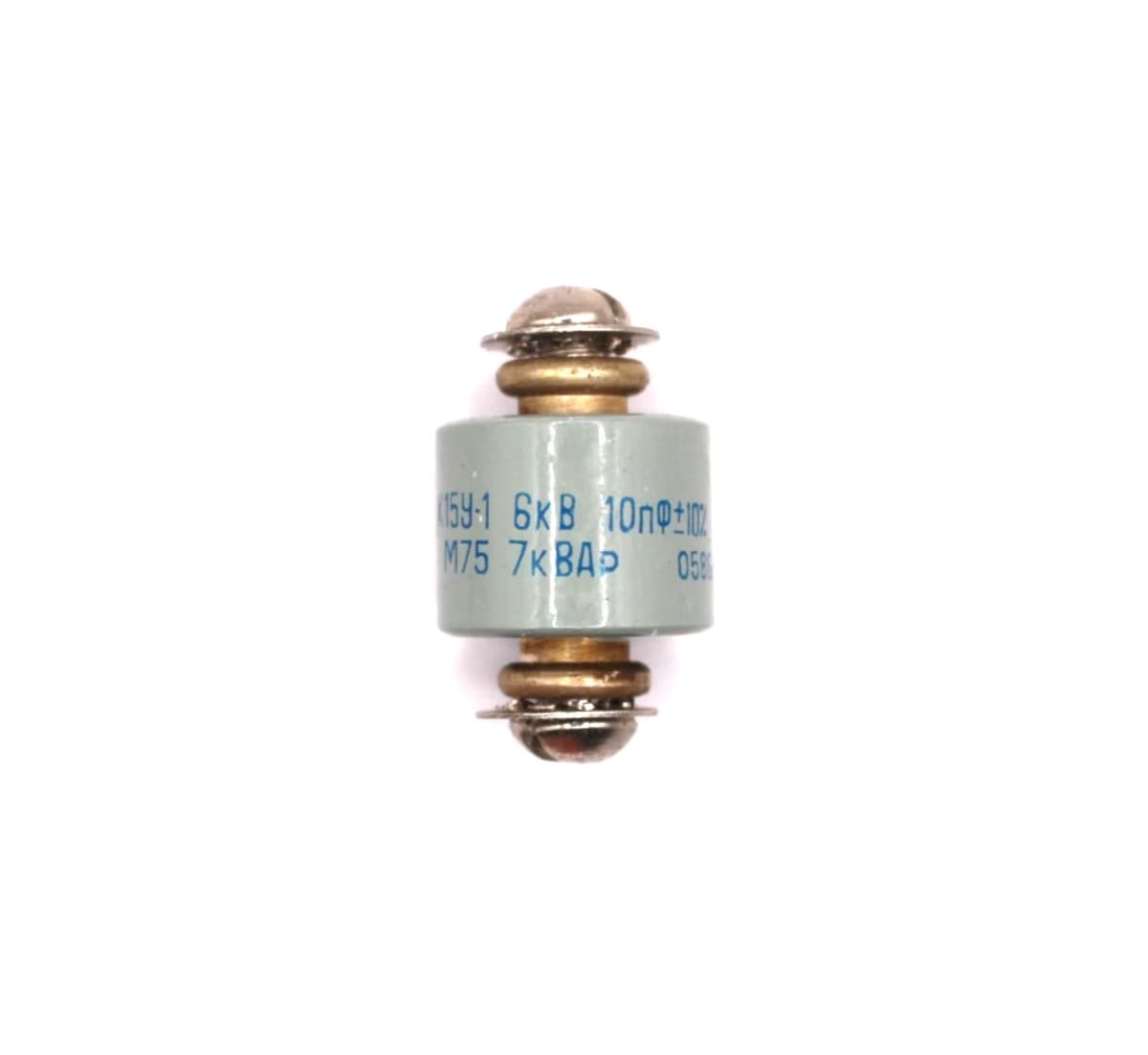

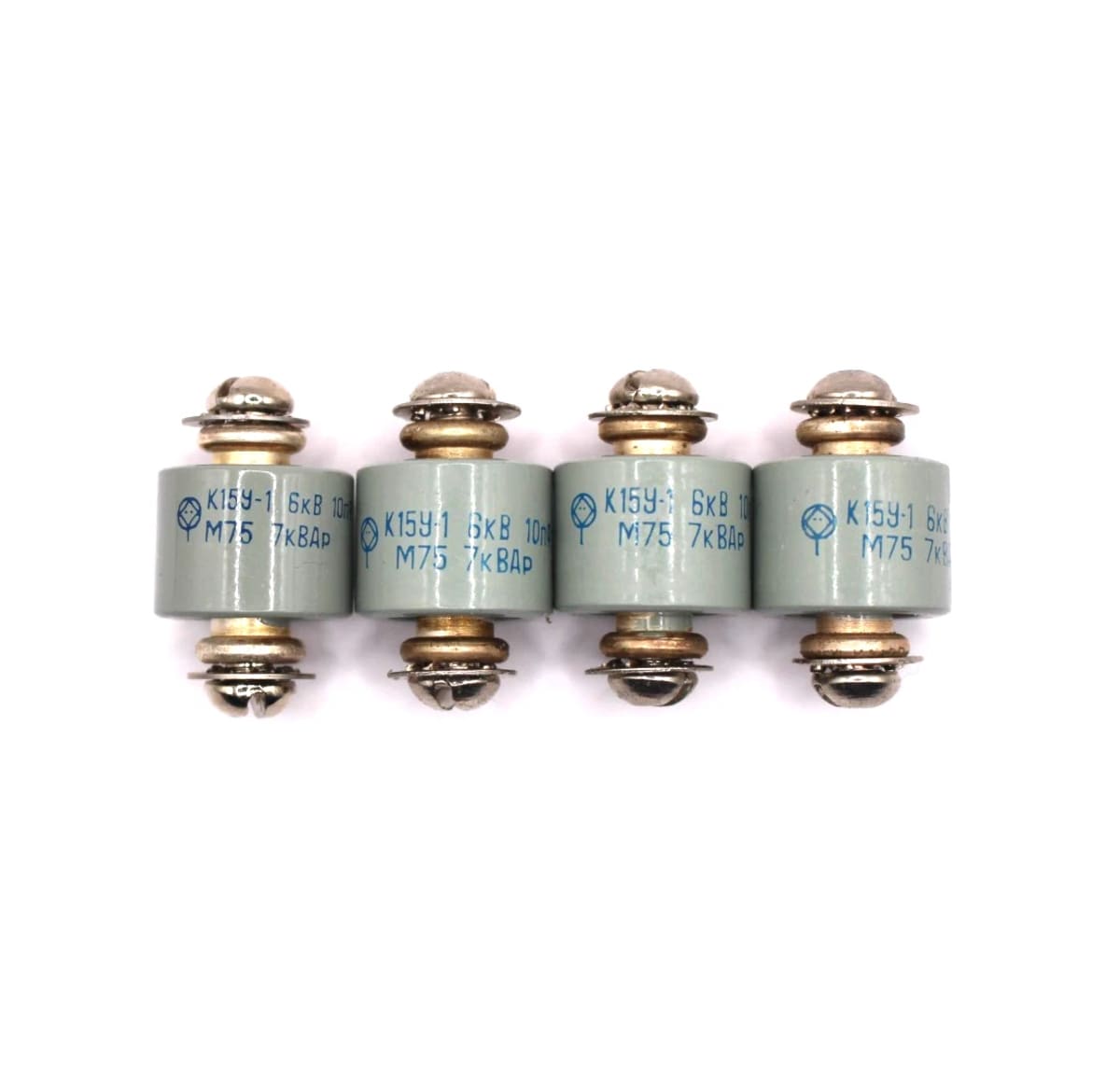

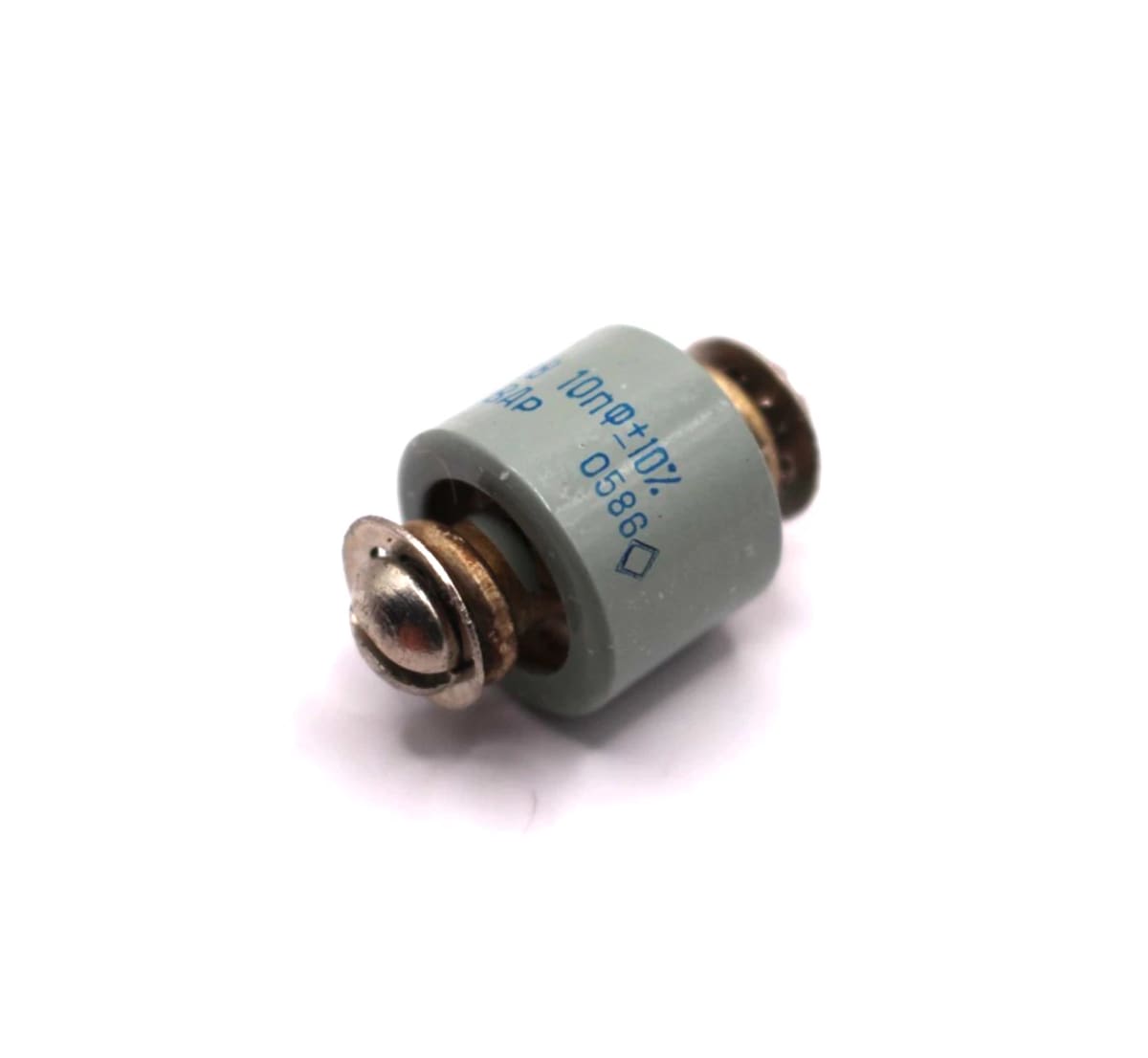

New Soviet K15U-1 (К15У-1) 10pF 6kV 7kVAR High Voltage Ceramic Doorknob capacitors.
Four capacitors in one lot (capacitors + screws)
New, Tested, and 100% Working.
K15U-1 6 kV 10 pF 7 kvar
Capacitors K15U-1 ceramic disk high-voltage protected non-insulated constant capacity.
Designed to operate in high-power radio equipment in continuous high-frequency mode and in DC circuits.
Used for universal use as loop, isolation and blocking capacitors.
Main technical parameters of capacitors K15U-1:
— Range of nominal capacities……. 1.0... 10000 pF;
- Rated voltage ……. 2; 3.5; 4; 6; 10; 12; 15; 20; 25 kV;
— Temperature stability group……. M75; M330; M750; M1500; P100; MP0;
— Permissible deviations of the capacity…….±10; ±20%;
— Loss angle tangent, no more than……. 0.0015;
— Insulation resistance, not less than……. 10000 MOhm;
— Relative air humidity at a temperature of +35 °C……. 98%;
— Temperature range……. -60… +155 °С;
— Minimum operating time……. 15000 hours
