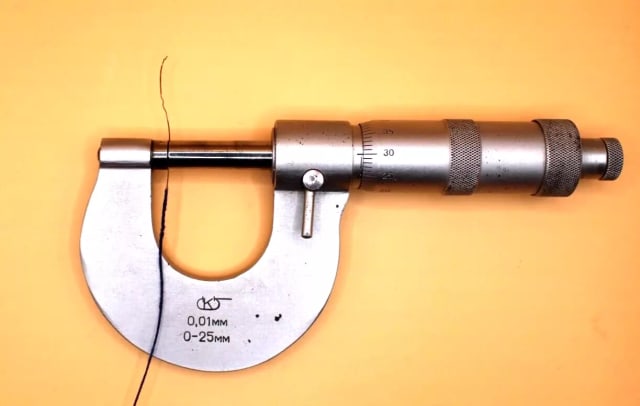

PESHOK 0.3mm winding wire with enamel insulated constantan wire / 20m in one lot
Constantan alloy, enamel + silk insulation, high resistance, thermostable to +105°C
$8.50
| Brand: | Soviet |
| Model/SKU: | PESHOK |
| Type: | Winding constantan wire |
| Condition: | New (Open Box) |
| Availability: | In Stock (7 available) |
Product Details

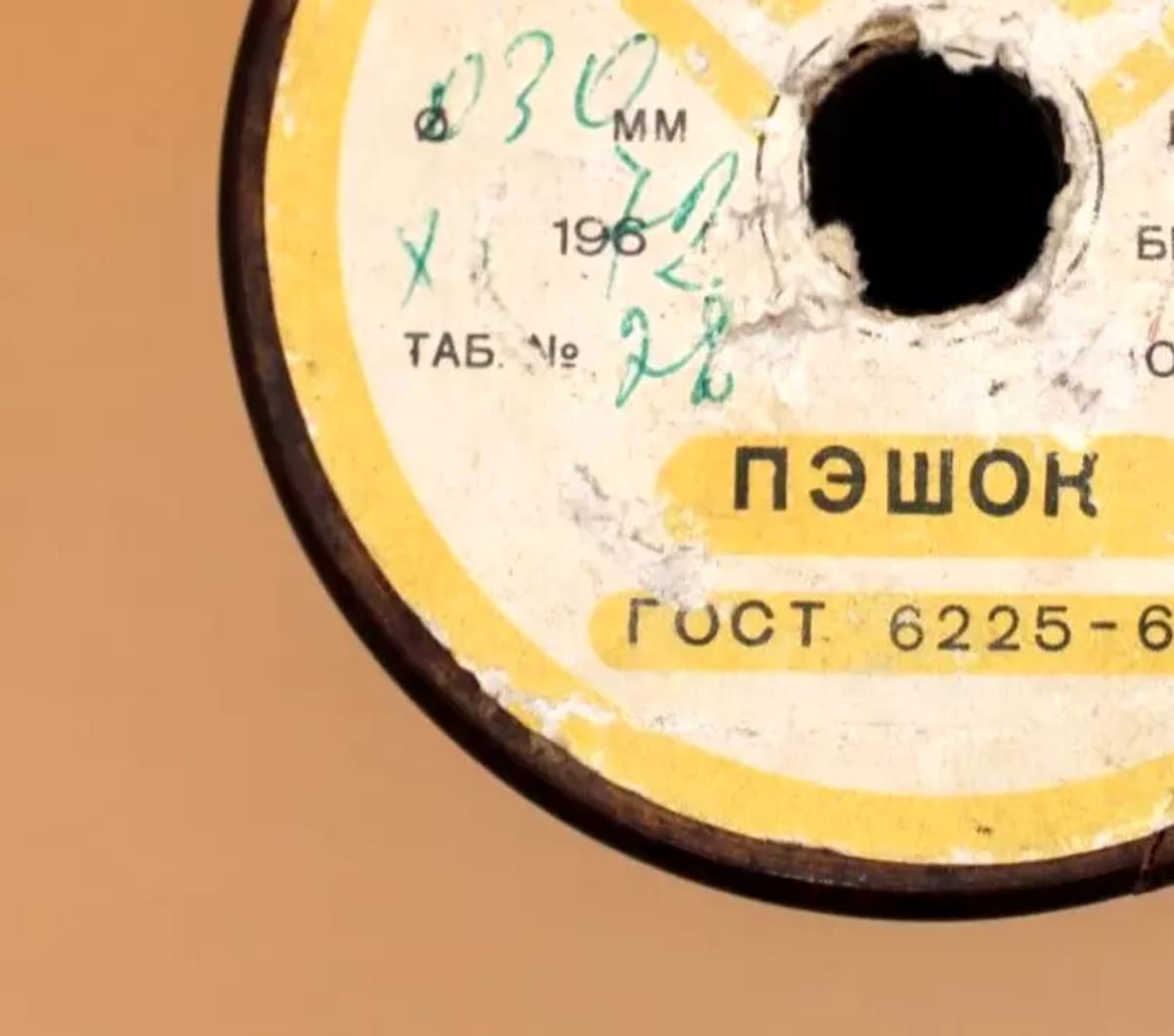

PESHOK enamel insulated constantan round winding wires .
One lot contains 20 meters of wire.
Condition:
The wire was not used, it was taken from old stock. The wire itself is intact, no damage to the insulation. Although some coil housings may be scratched or damaged.
PESHOK winding wires with enamel insulated constantan rounds
are designed for windings of electrical machines, apparatus and devices.
PESHOK wires are insulated with enamel varnishes based on polymerized vegetable oils with additional winding.
vegetable oils with additional winding with natural silk.
Wires are used in radio engineering and aviation.
Enamel insulation protects the cable from short circuits.
Also PESHOK has increased resistance.
PESHOK winding wires have modifications PESHOKT, PESHOKM.
Unit designation:
PESHOKT(M) wire where:
P - wire.
E - polyester insulation.
Winding:
- SH - of silk threads;
- O - single-layer.
K - constantan wire (thermostable alloy based on copper with the addition of nickel and manganese).
nickel and manganese).
Wire type:
- T - hard;
- M - soft.
Technical characteristics of PESHOK:
Cross-section for wires of type:
- PESHOKT - from 0.08 mm2 to 0.18 mm2;
- PESHOKM - from 0.1 mm2 to 0.3 mm2.
Heat resistance of wires - +105° С.
Number of conductors - 1.
Class of heat resistance of insulation in impregnated state - A.
Minimum ambient temperature at operation - (-60° С).
Maximum diameter of the finished wire - from 0.13 mm to 1.14 mm.
