8X New PLK7-E55 ПЛК7-Э55 Ceramic Sockets for 7 pin tubes 50mm Alluminium shield
Ceramic 7-pin sockets with 50mm aluminum shields, fits 6J1P/6J2P/6C4P series, set of 8
$9.14
| Brand: | Soviet |
| Model/SKU: | PLK7-E55 |
| Type: | Tube socket |
| Condition: | New (Open Box) |
| Availability: | In Stock (3 available) |
Product Details

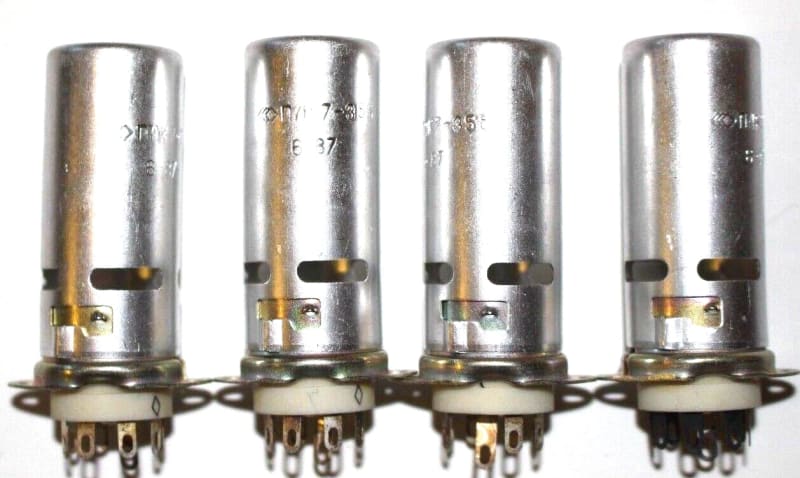

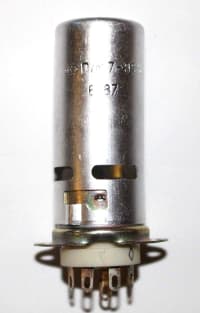

New Soviet PLK7-E55 7-pin tube sockets.
Eight sockets in one lot.
New old stock, excelent condition.
50 mm height.
All sockets have alluminium shields.
Compatible tubes: 1A1P, 1A2P, 1B2P, 1K1P, 1K2P, 2P1P, 2P29P, 3C18P, 6V32, 6A2P, 6A3P, 6J1P, 6J1P-V, 6J1P-E, 6J1P-EV, 6J2P, 6J2P-V, 6J2P-E, 6J2P-EV, 6J38P, 6J38P-EV, 6J3P, 6J3P-E, 6J40P-D, 6J4P, 6J53P, 6J5P, 6K1P, 6K4P, 6K4-EV, 6N15P, 6S1P, 6S2P, 6H2P, 6H2P-EV, 6H2P-ER, 6C4P, 6C4P-V, 6C4P-E, 6C4P-EV, EC92 RWN RFT, EC92 Tungsram, SG-16P, SG-1P, SG-1P-EV, SG-SP etc.
Suitable for all types of finger lamps with balloon height up to 50mm.
Main technical and operational characteristics of the PLK7-E55 socket:
● Operating voltage, not more than ...... 600 V;
● Operating current, not more than ...... 0.5 A;
● Electrical contact resistance ...... not more than 0.01 Ohm;
● Insulation resistance ...... not less than 1000 Mohm;
● Operating temperature range ...... from -60 to +100°C;
● Product shelf life ...... 11 years;
● Panel material ...... ceramic;
● Weight ...... not more than 12 g.
