2x NOS INP3-7/80A Xenon Light Bulb Vintage Laser Pumping Flash Tube Tested 2pcs
Razryad factory, UV-filtering coating, 1400A max current, tested 100% working
$15.79
| Brand: | Razryad |
| Model/SKU: | INP3-7/80A |
| Type: | Impulse Tube |
| Condition: | New (Open Box) |
| Availability: | In Stock (1 available) |
Product Details

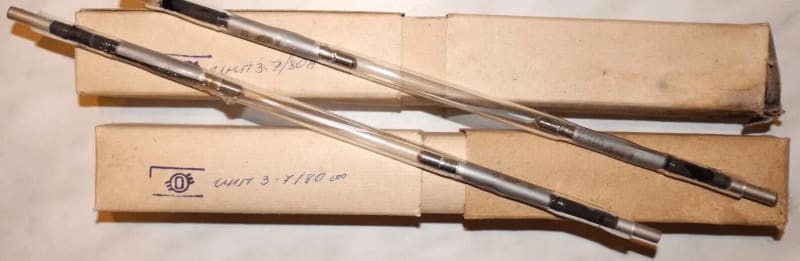

New rare soviet INP3-7/80A laser pumping flash tubes.

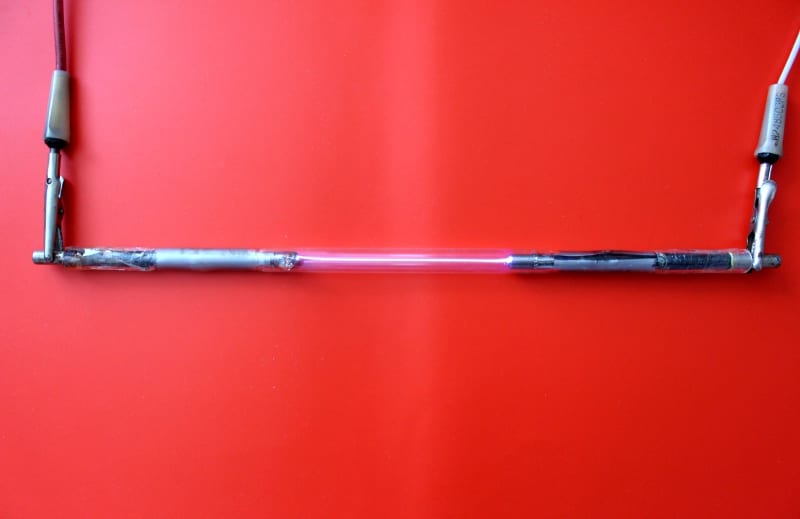

Tested and 100% working.
Two tubes in one lot.
Every tube is carefully packaged before being shipped.
We guarantee that the tubes have not been used, but may have some signs of prolonged storage.

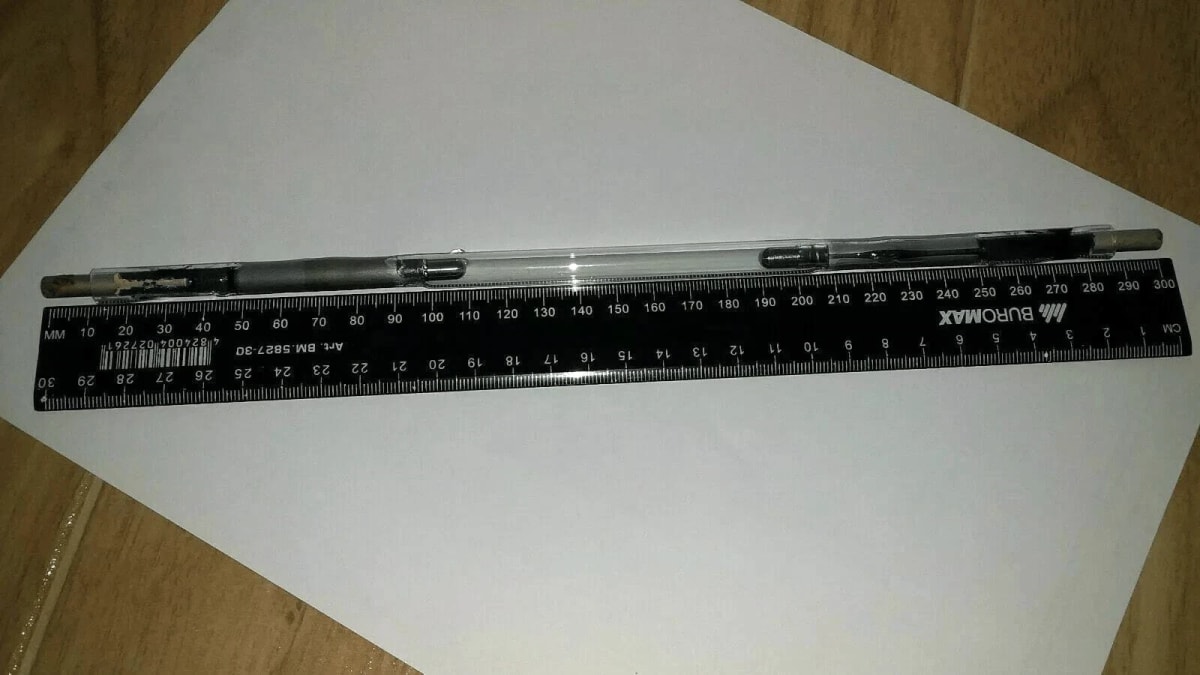

We do not ship these tubes in the original packaging because the tubes are long and can easily crack, and the original packaging is very unreliable, but gives extra weight and volume.

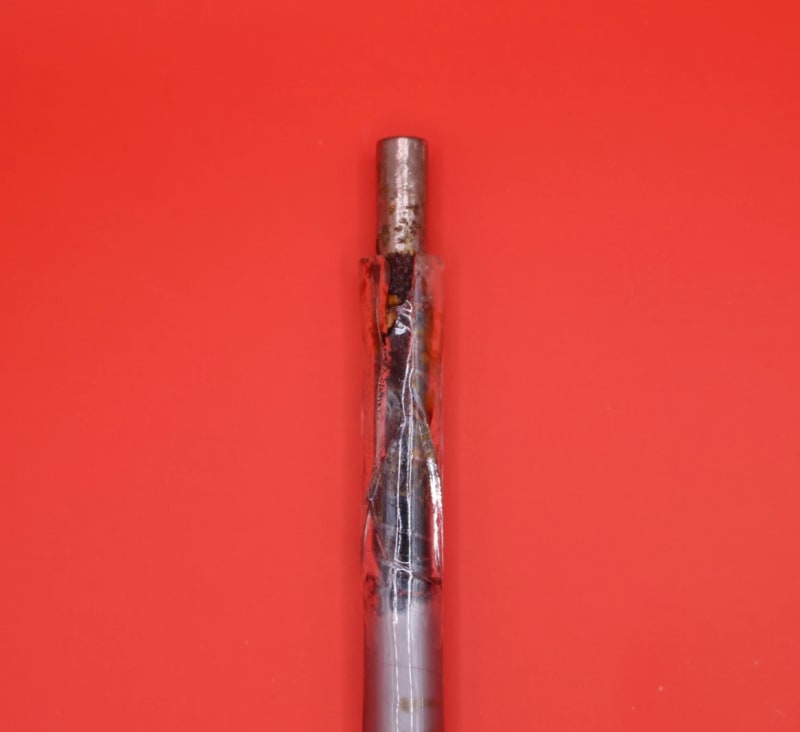

There may be cracks in the glass at the edges of some tubes because there is a void at the edges of the tube between the glass and the metal. These cracks are purely result fo the fragile structure of the tube, and have no effect on its functionality.
When you receive the parcel, unpack the tubes very carefully and take your time!
We ship via International Airmail .
Tracking number is provided.

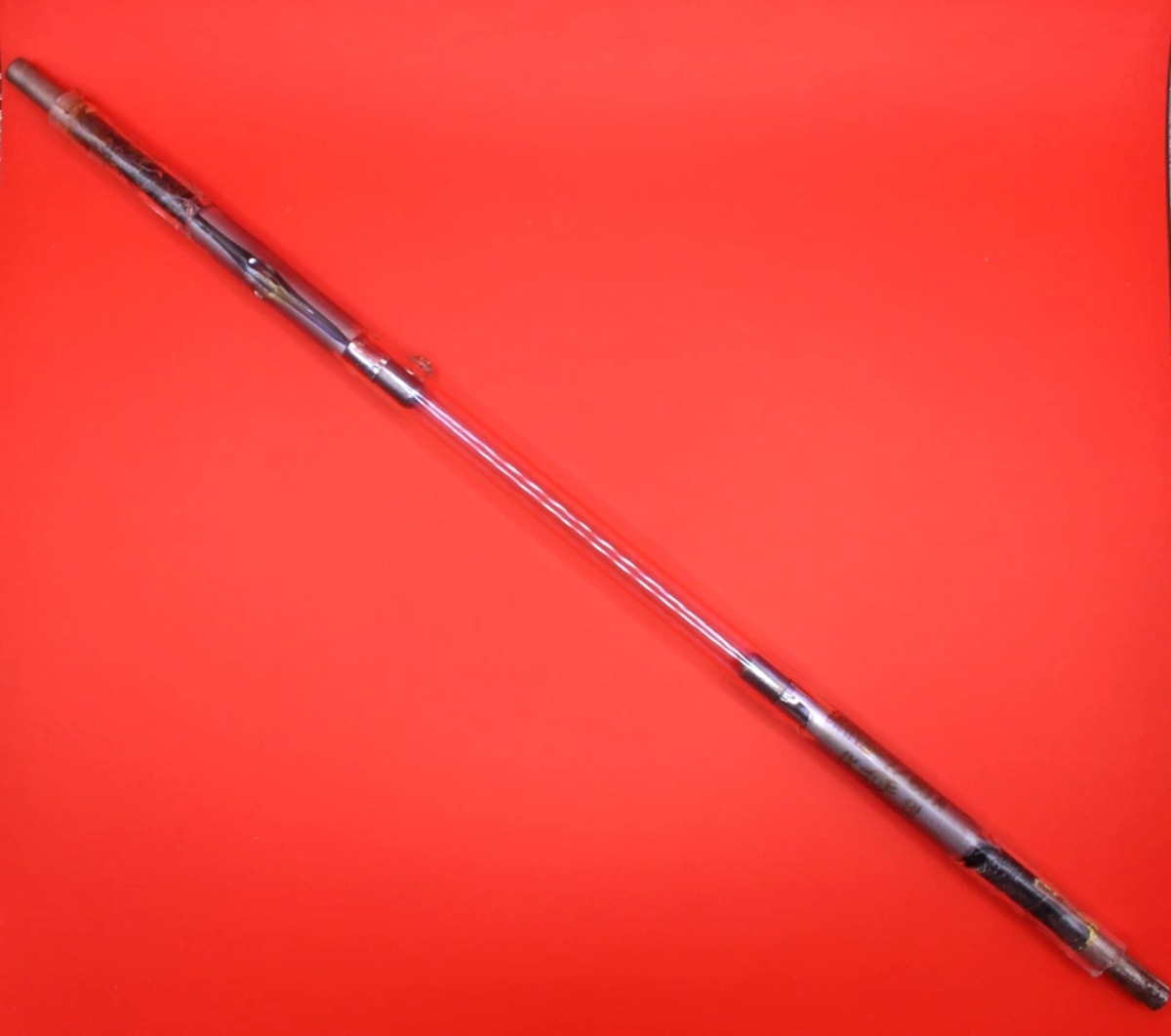

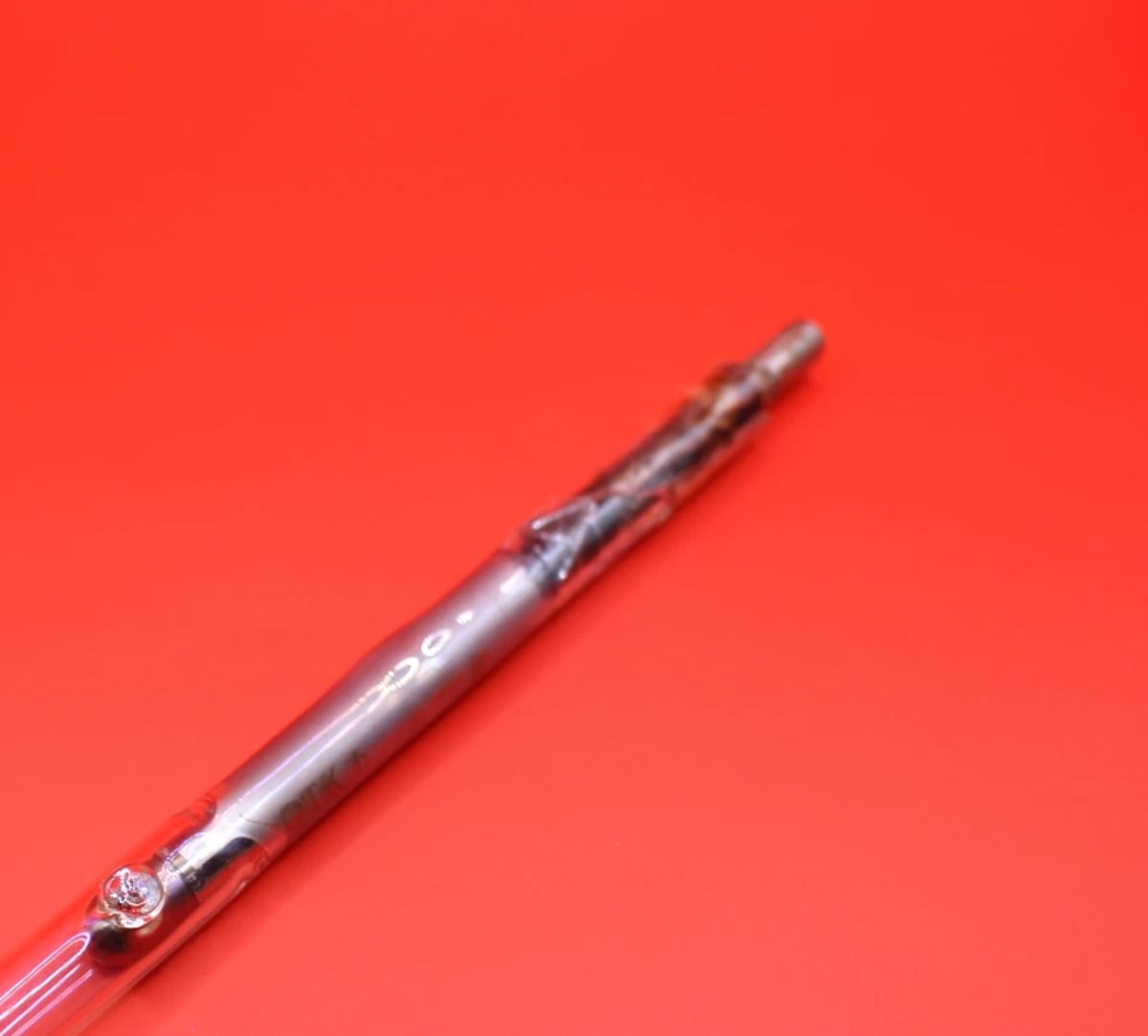

The INP3-7 / 80A pulsed lamp with a straight glow body and foil current leads is designed for optical pumping of active elements of lasers. The INP3-7 80A lamp has a filtering coating that cuts off the ultraviolet part of the radiation spectrum. Electrical and radiation parameters upon delivery of the INP3 7 / 80A lamp
Parameter name, Unit of measurement Norm
no less no more
Ignition voltage, V - 500
Self-breakdown voltage, V 2500 -
Lighting in the direction
perpendicular to the lamp axis, cds 1000 *
Electrical parameters and radiation parameters changing during operation
Ignition voltage, V, no more than 550
Illumination in the direction perpendicular to the lamp axis, CDF, not less than 700 *
The transparency of the coating in the ultraviolet part of the radiation spectrum is not more than 10%
* Illumination values quoted are based on lamp operation in the following mode:
- permissible voltage, V 580
- capacity of the storage capacitor, microfarad 2400
- duration of a pulse of luminous intensity, μs 4000 ± 800
Imax - maximum operating current - 1400 A
Operating voltage - 600-1700 V
Ignition pulse amplitude - 18 kV
Treshold average power - 3500 W
