2x 6N6P =ECC99 ~E182 ~6CG7 Foton / Square getter / Rare M. pair 1960-s Gold Grid
Foton 1960s, square getter, gold grid, matched pair, similar to ECC99/E182CC/6CG7
$50.32
| Brand: | Foton |
| Model/SKU: | 6N6P |
| Type: | Double Triode |
| Availability: | In Stock (3 available) |
Product Details
Please, pay attention to the title: '=' means "fully similar" — our tube can replace this model without any additional adjustements; '~' means "partially similar" — our tube can replace this model only after some adjustments to your system.

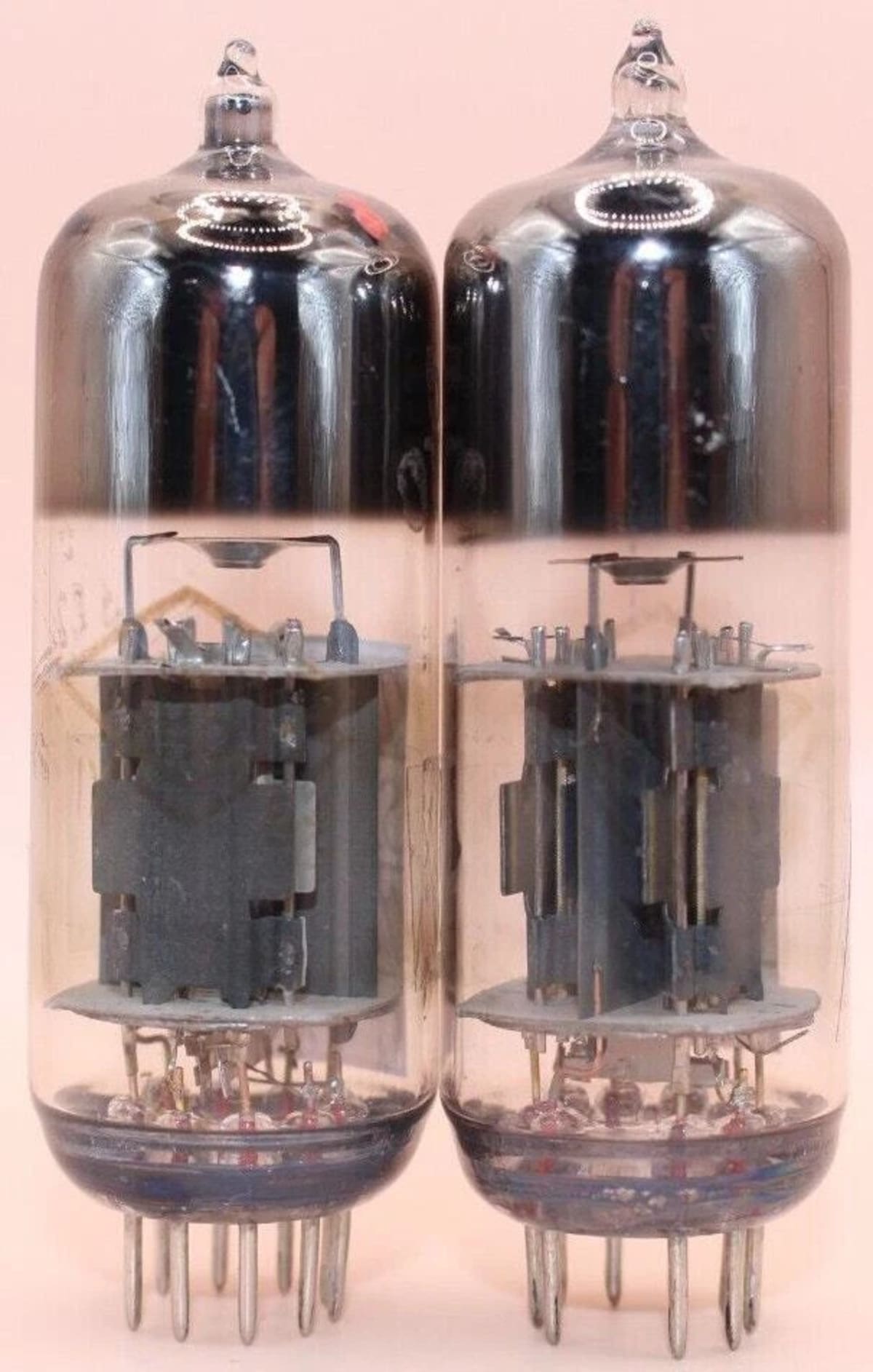

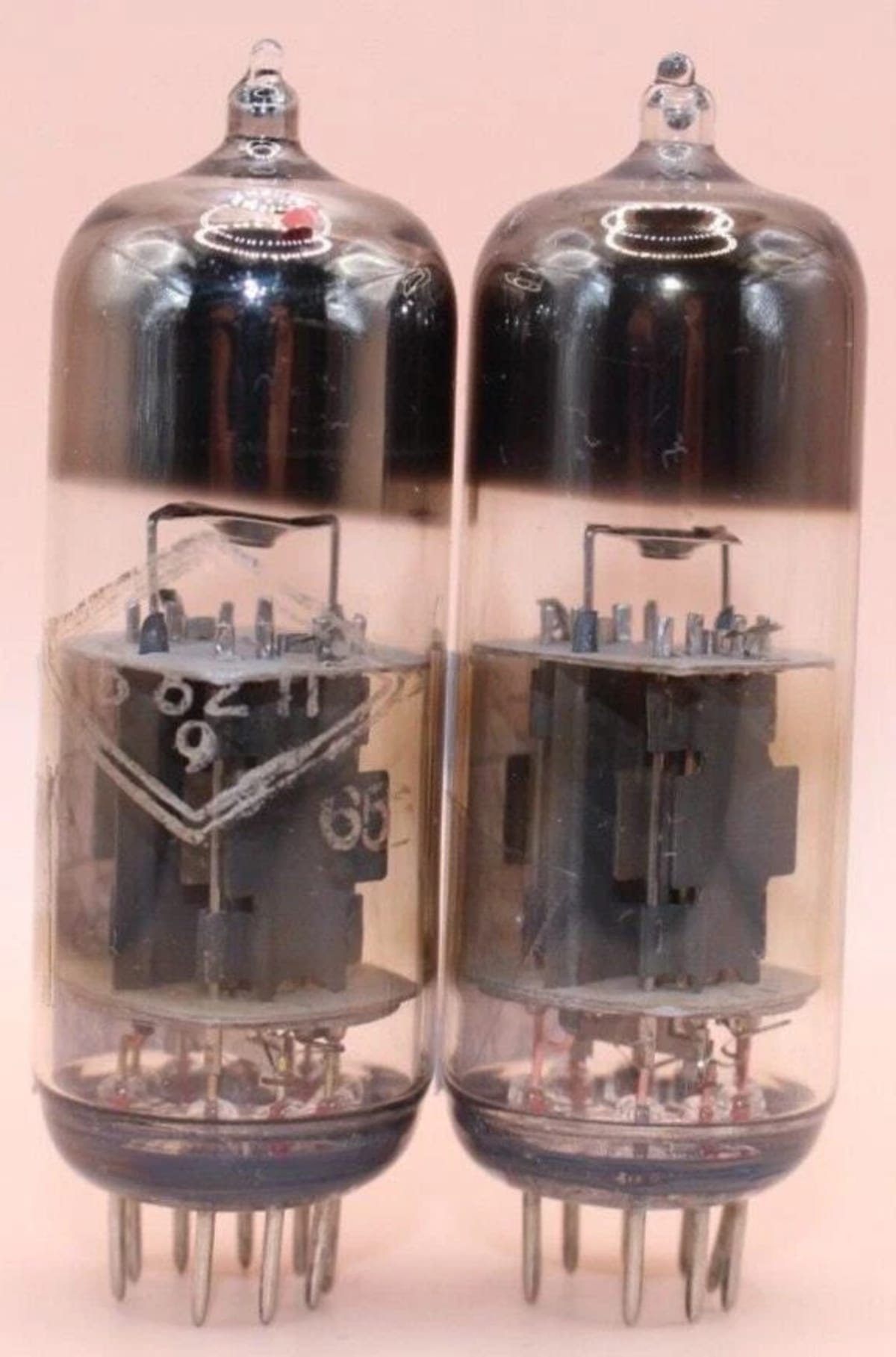

Soviet 6N6P vacuum tubes from FOTON factory 60-s.
SQUARE GETTER!
Two tubes in one lot, matched pair in each lot.

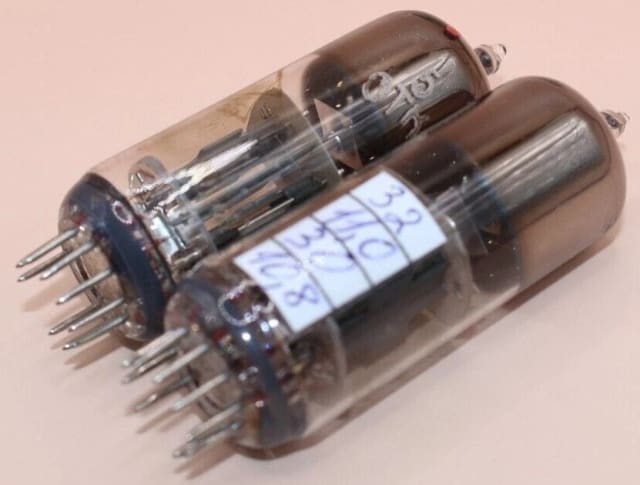

Tested on L3-3 tester.
We ship via International Airmail.
Tracking number is provided.
Double triode with separate cathodes 6N6P is designed to amplify low frequency power and to operate in a pulsed mode. Miniature design in a glass bottle.
Approximate foreign analogues: E182CC, 5687 (WA), 6BX7GT, 6BL7GT (A), 6DN7.
Precious metal content in one tube:
Gold - 0.008g. on the grid.
Tube base 6N6P
Characteristics of the 6N6P tube
Filament voltage 6.3 V
Filament current 0.75 A
Anode voltage 120 V
Anode current 30 mA
Grid voltage -2 V
Slope 11 mA / V
Gain 20
Running hours 3000 h
Interelectrode capacitances of 6N6P tube
Input 4.4 pF
Output 1.7 pF
Lead-through 3.5 pF
Between cathode and filament 8 pF
Between anodes 0.1 pF
Limit operational data of the 6N6P tube
The highest anode voltage 300 V
The highest power dissipated by the anode 4.8 W
