1x New ILC1-1/7 Tested VFD Display NOS Digital Indicator for Clock 1pc in lot
Large format vacuum fluorescent display with 76mm green segments. Perfect for retro digital clocks and vintage electronics projects.
$95.00
| Brand: | Reflector |
| Model/SKU: | ILC1-1/7 |
| Type: | VFD Indicator |
| Condition: | |
| Availability: | In Stock (2 available) |
| Datasheets: |
Product Details
New Soviet ILC1-1/7 VFD Indicators.
Good choice for vintage clock.
One indicator in one lot.
Good condition, tested before delivery.
We ship via International Airmail.
Tracking number is provided.

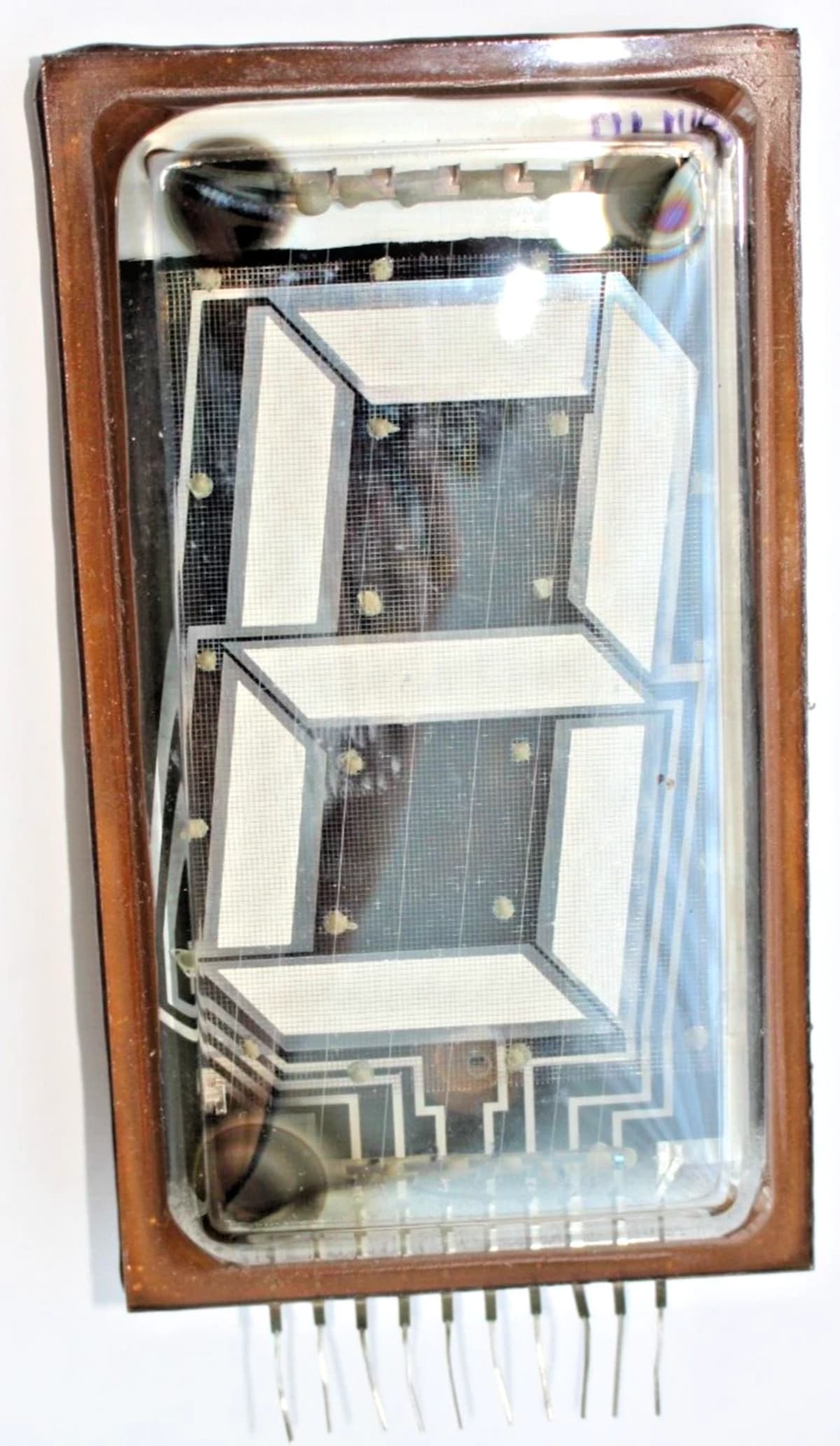

ILC1-1/7 is a luminescent seven-segment indicator of green light color. It is intended for displaying information in large table and wall clocks and other electronic equipment. Indicator ILC1-1/7 is made in a glass bulb with stamped tinned leads. Anodes of the device are made in the form of seven segments.
Technical characteristics of ILC1-1/7:
Brightness - not less than 600 cd/m2.
Pumping current - from 180 mA to 220 mA.
Filament voltage:
- nominal - 5 V;
- permissible - from 4.25 V to 5.5 V.
Voltage of anodes and grid of the indicator ILTS1-1/7:
- nominal - from 22 V to 24 V;
- maximum - 35 V.
Total anode-segment constant current - from 70 mA to 100 mA.
Grid constant current - from 35 mA to 80 mA.
Service life of indicators - 20 000 hours.
The information field of the indicators is 76 mm high.
The color of glow is green.

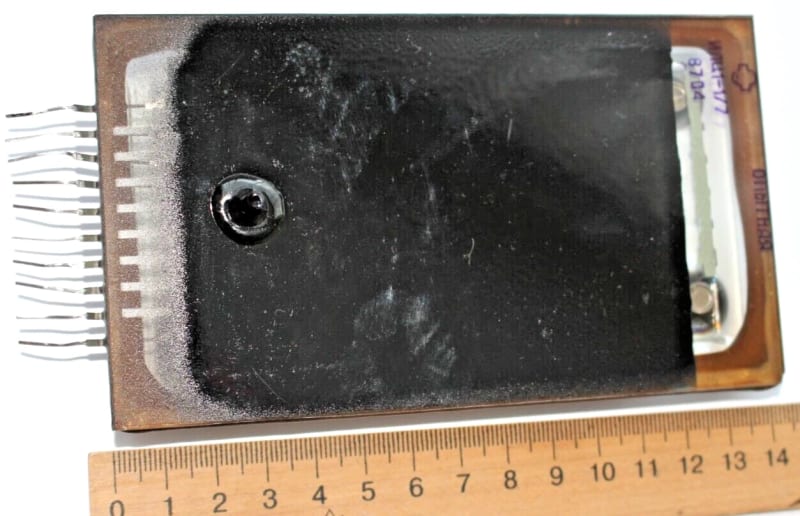

Overall dimensions of the indicator ILC1-1/7 - 83×140×30 mm.
Dimensions of the sign - 76×46 mm.
Weight of the indicator - not more than 60 g.
