1x IV-20 ИВ-20 ~IV-13 IV-19 Soviet Indicator VFD Nixie Tubes Tested / Reflector
Used Reflector IV-20 VFD nixie tube, tested, flexible pins version of IV-19
$29.75
| Brand: | Reflector |
| Model/SKU: | IV-20 |
| Type: | Nixie Tube |
| Condition: | Used |
| Availability: | In Stock (4 available) |
Product Details

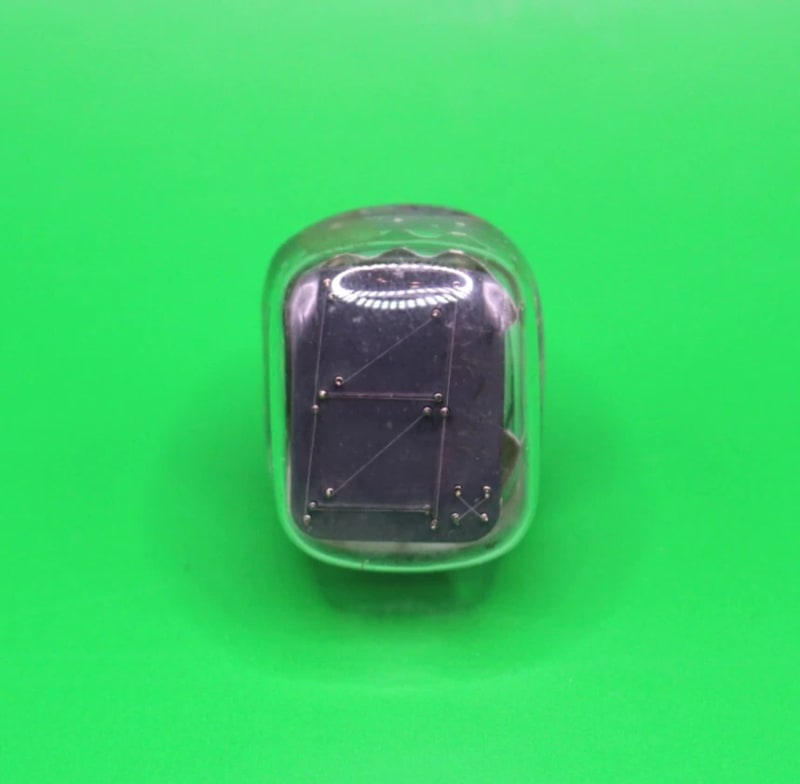

Used IV-20 VFD nixie tubes.
Same to IV-19 tubes, but this model has flexible pins.
One tube in one lot.
Every tube is tested and 100% working.
Very interesting solution for making cool vintage clock.
Technical specifications of IV-20:
Rated voltage of segments - 3,6 V.
Rated current of segments - not more than 25 mA.
Frequency range - from 0 to 150 kHz; from 600 kHz to 1000 kHz.
Brightness of luminescence - from 3000 cd/m2 to 4000 cd/m2.
Maximum segment voltage - 4 V.
Maximum pulse voltage of segments - 300 V.
Formation of decimal sign and digits range - from 0 to 9.
Durability of the IV-20 - not less than 10 000 h.
Overall dimensions:
- height - 36 mm;
- length - 21 mm.
Weight - not more than 20 g.
