1x FEU-82 ФЭУ-82 PMT Photomultiplier Tube Antimony Cesium 380-480nm
Large-area photomultiplier with wide spectral response, offered untested for parts or restoration
$32.00
| Brand: | Soviet |
| Model/SKU: | FEU-82 |
| Type: | Photomultiplier tube |
| Condition: | |
| Availability: | In Stock (1 available) |
| Datasheets: |
Product Details

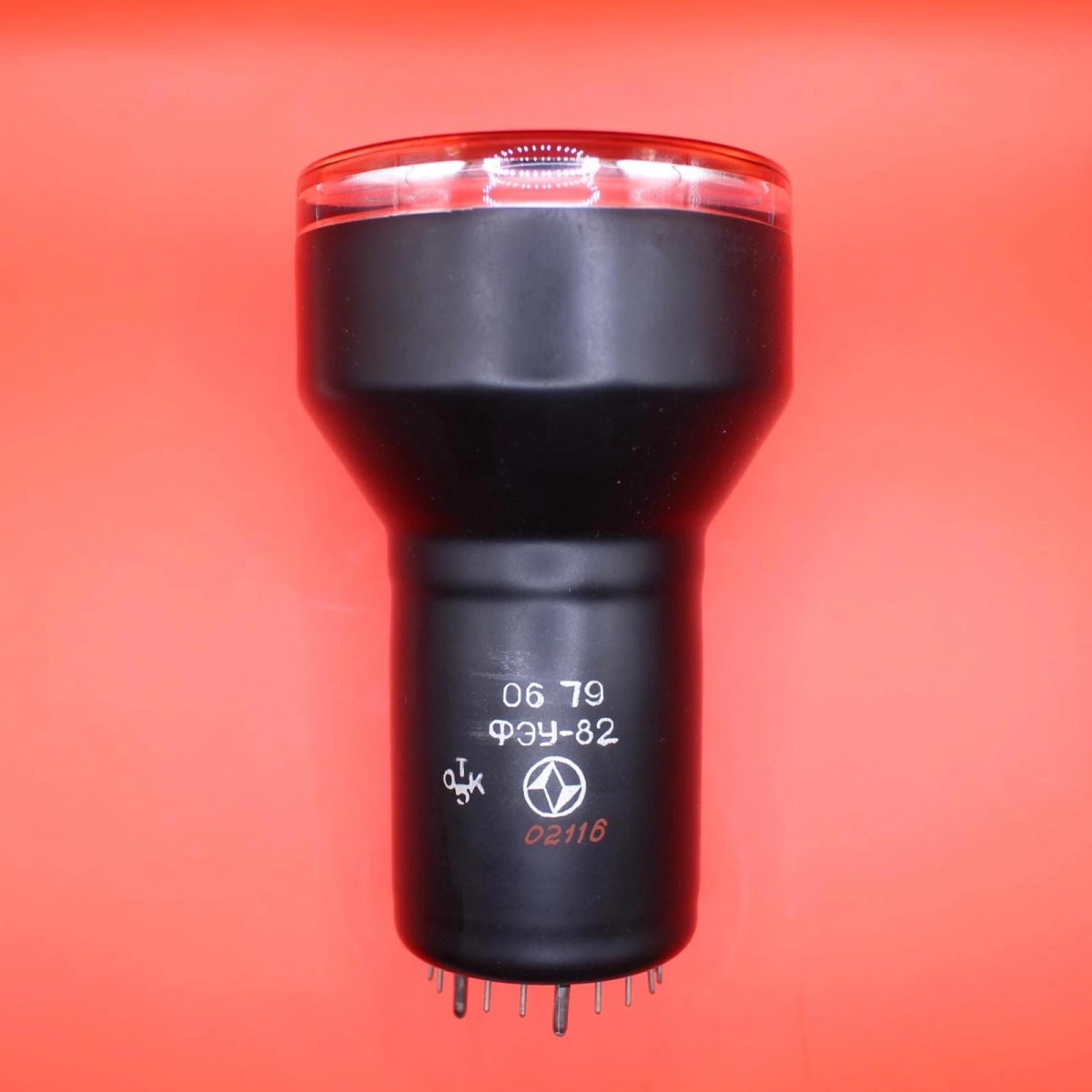

Soviet FEU-82 photomultiplier tube.
One tube in one lot.
The tube is sold as "for parts", because prior history is unknown and no tests were performed.
The tube is in good condition, but it may either be working, or not.
We ship via Standard International Airmail from Kyiv.
Tracking number is provided.
Key Characteristics:

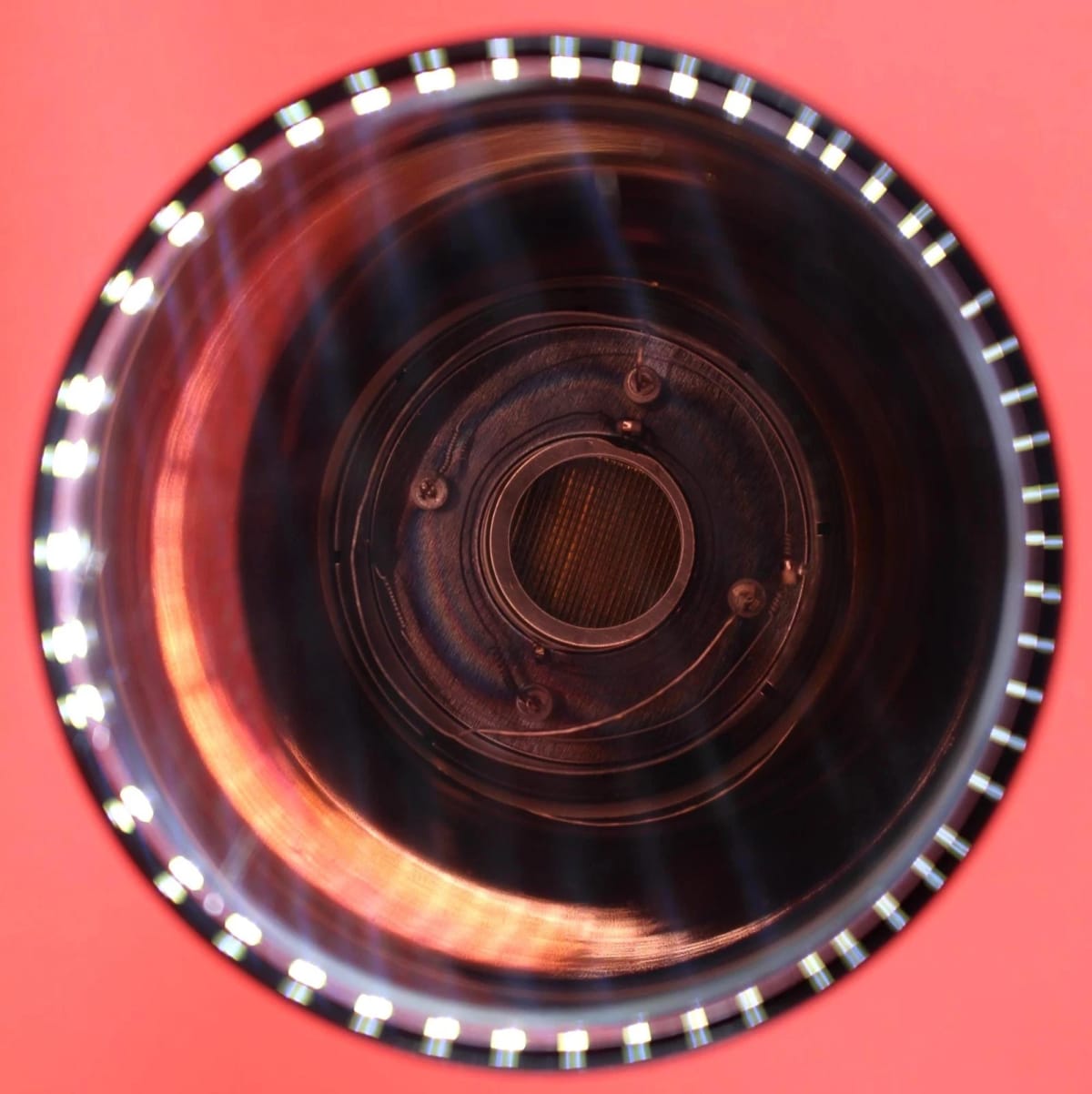

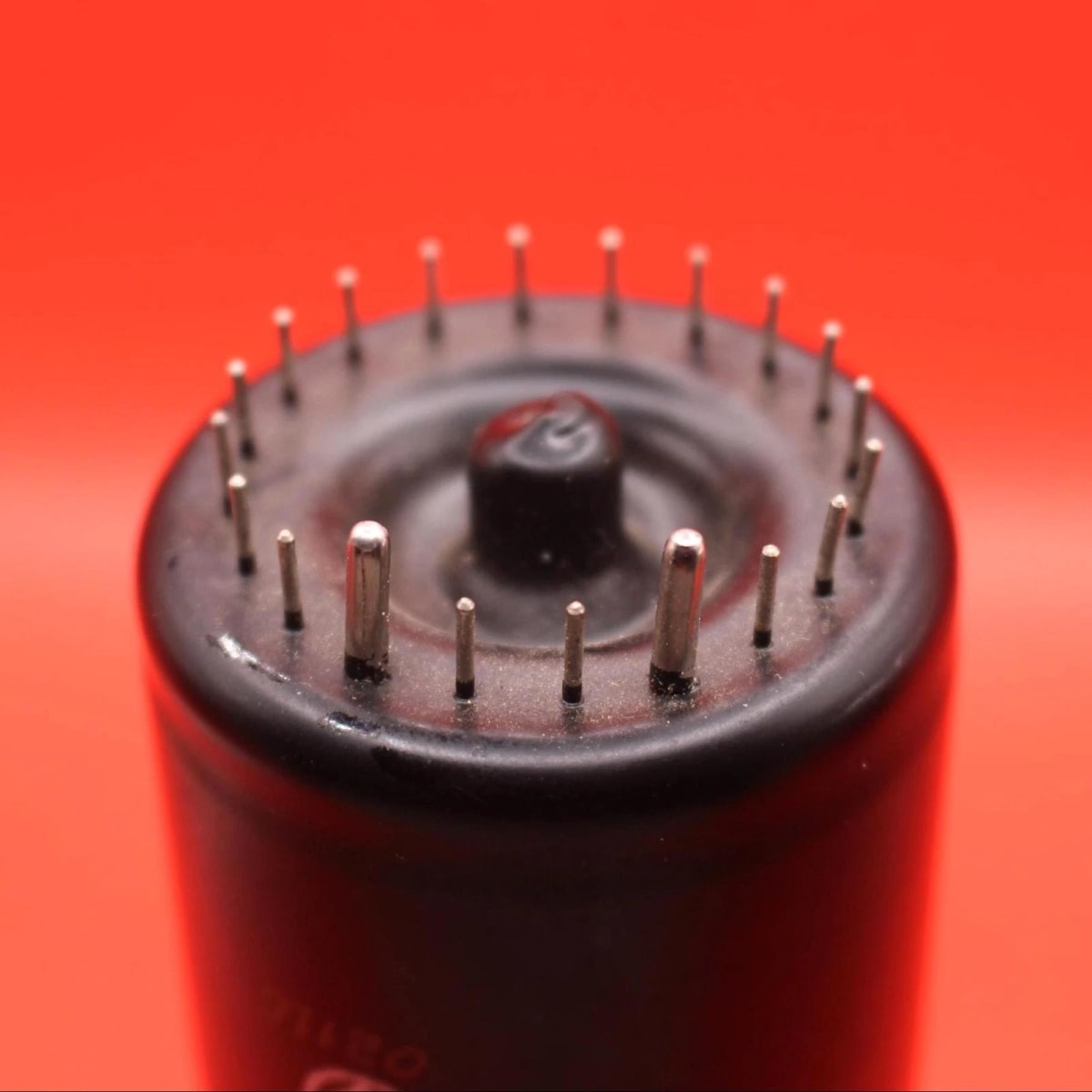

Photocathode window: End (face) type, rigid leads
Photocathode diameter: 60 mm
Spectral response: Type C-4
Operating range: 0.3–0.65 µm
Peak sensitivity region: 0.38–0.48 µm
Number of dynode stages: 12
Electrical / Optical Parameters:
Photocathode sensitivity (Sₚₕₖ): ≥ 30 µA/lm
Anode sensitivity (Sₐ):
~10 A/lm (at 600 V)
Up to 100 A/lm (at 2000 V)
Maximum supply voltage: 2500 V
Dark current (Iₜ): ≤ 8×10⁻⁸ to 1×10⁻⁶ A
Anode current (Iₐ): ≤ 1×10⁻² A
Pulse rating (Fs): 5 kV
Mechanical / Environmental:
Operating temperature range: −60°C to +70°C
Dimensions: Ø80 × 150 mm
Weight: ≤ 220 g
