10x NOS 6J46B-V / 6ZH46B-V Miniature HF Pentode Tubes / OTK / Same date
Miniature high-frequency pentodes with double control and OTK quality marking. Same production date for consistent performance in RF amplifier circuits.
$11.00
| Brand: | Soviet |
| Model/SKU: | 6J46B-V |
| Type: | Pentode |
| Condition: | New (Open Box) |
| Availability: | Out of Stock |
| Datasheets: |
Product Details
New 6J46B-V HF miniature pentode tubes.

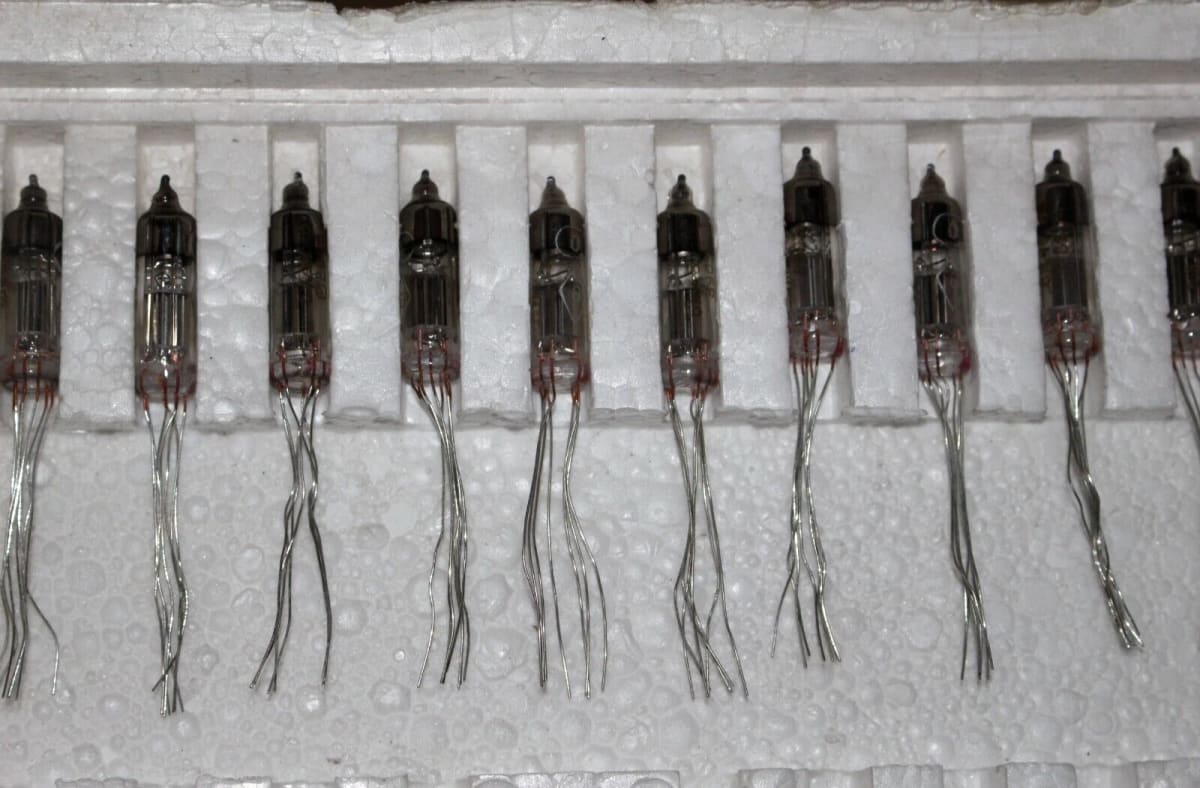

Ten tubes in one lot.
All tubes have the same date and have OTK marking.
Designed to work in high frequency voltage amplification circuit.
Read the detailed description below!
High-frequency miniature pentode with double control, short anode-grid characteristic of increased reliability and mechanical strength.

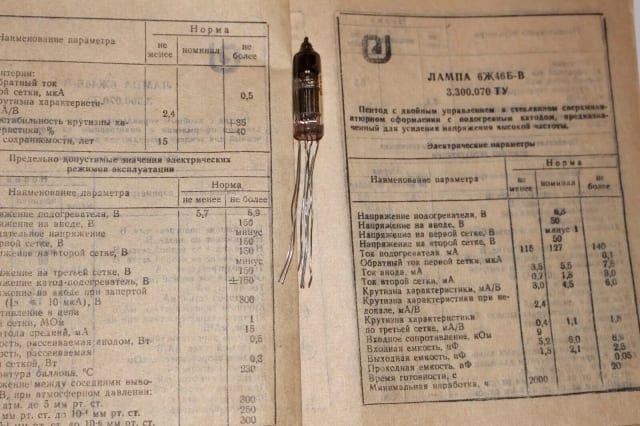

Technical characteristics and electrical parameters of the lamp 6Zh46B-V:
Rated electrical data:
• Heating voltage, V 6.3 ±0.6
• Glow current, mA 125 ±10
• Anode voltage, V 50
• Voltage on the second grid, V 50
• Current in the anode circuit, mA 5.5
• Current in the circuit of the second grid, mA 1.8
• Steepness of characteristic, mA/V 4.5
• Input resistance, kOhm 10
Maximum allowable electrical values:
• The highest voltage on the anode, V 150
• The highest voltage on the second grid, V 150
• The highest power dissipated on the anode, W 0.5
• The highest power dissipated on the second grid, W 0.3
• The highest current in the cathode circuit, mA 10
• The highest voltage of the cathode-heater, V 150
• The highest resistance in the circuit of the first grid, mOhm 1
• Input capacitance, pF 6.1
• Output capacity, pF 2.1
• Passing capacitance, pF 0.05
