100x New K561TM2 Soviet microchips Clone of CD4013 / Dip14 NOS / ussr
CMOS logic ICs bulk lot of 100, clone of CD4013 dual D-type flip-flop, DIP-14 package
$25.50
| Brand: | Soviet |
| Model/SKU: | K561TM2 |
| Type: | Microcircuit |
| Condition: | New (Open Box) |
| Availability: | In Stock (6 available) |
Product Details

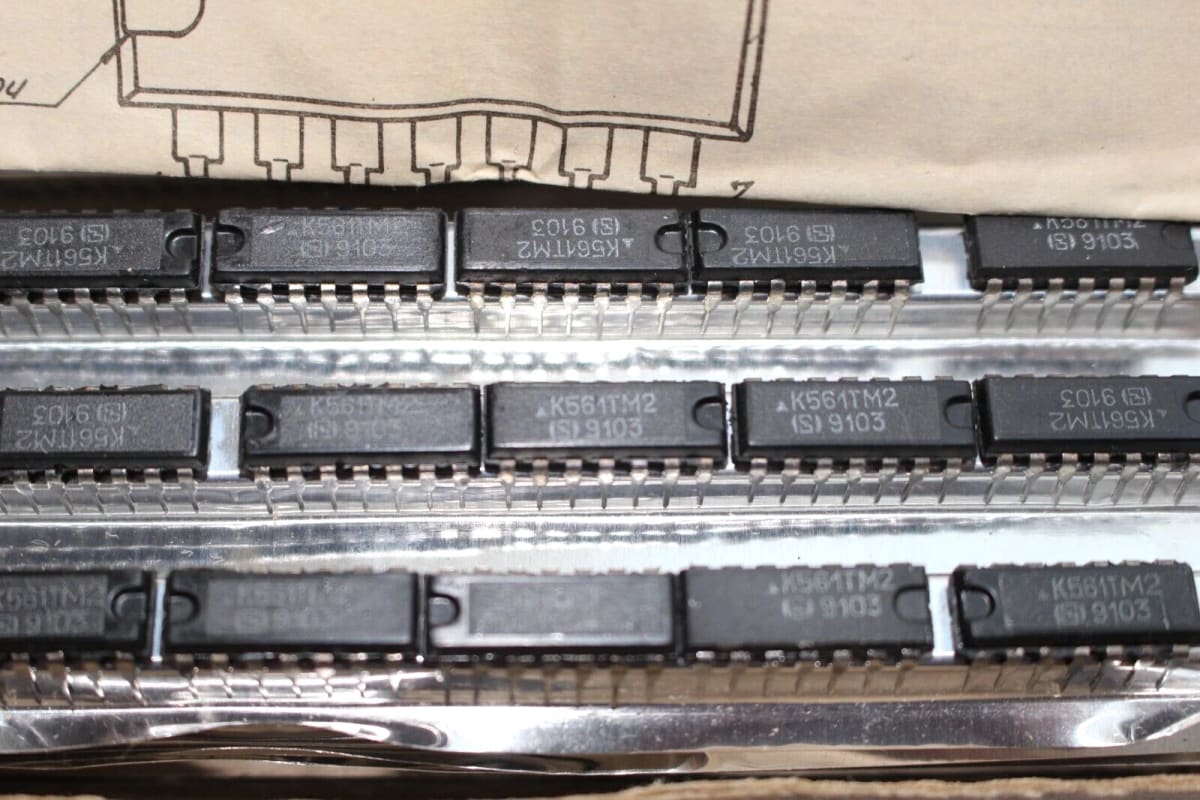

New Soviet K561TM2 chips.
One hundred chips in one lot.
We ship via International Airmail.
Tracking number is provided.
A digital integrated circuit of CMOS logic produced in the Soviet era. It was widely used in household appliances. Often used by radio amateurs to create various devices based on digital chips.
It contains two D-triggers with settings of 0 and 1.

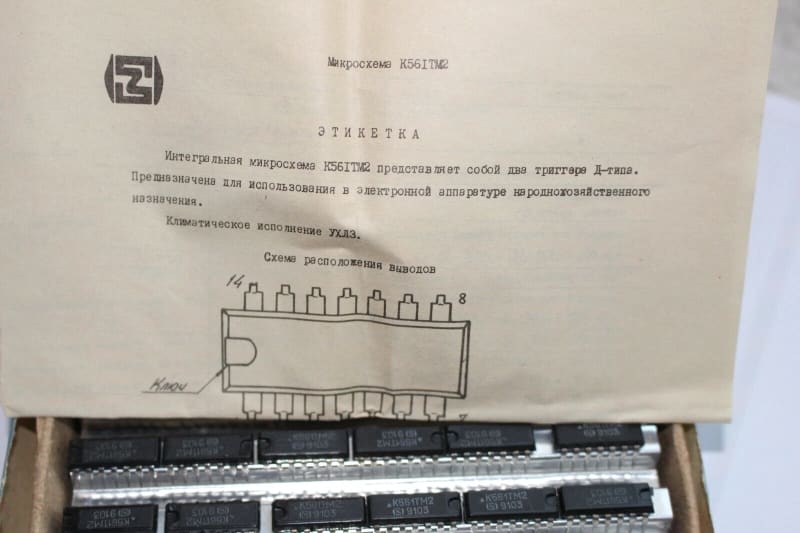

The numbering of legs starts from the key on the case in an anti-clockwise direction.
Chips consist of two two-level (master-slave) D-flip-flop with the inputs of asynchronous set and reset, and antiphase outputs.
The supply voltage (Vdd) +3 .. + 15V (max 18V)
O. voltage log. 0 <0,05V
O. voltage log. 1> Upow-0,05V
Operating temperature range -40oC .. + 85oC
Housing DIP -14
